JD2600A New Digital Auto Lens Meter


Approx Price: Rs 85,000/ Set(s)

Item specifics

  • Brand Name:Shining Sun Vision
  • Item Name:Auto lensmeter
  • PD test:Available
  • UV test:Available
  • Printer:Built-In
  • Monitor Type:Colorful Touch
  • Contact Lens:Measureable
  • Progressive:Measureable
  • Tinted Lens:Measureable
  • Warranty:One year
  • Certificate:CE


JD2600A New Digital Auto Lensmeter Lensometer Focimeter Lens Meter 7” LCD Touch Screen PD UV Printer
1. Adjustable LCD display screen
Tilt color screen provides you with clear view from any position such as sitting and standing;

2. Sensitive touch LCD display screen
You just touch the screen to finish your measurement, the operation could be easier and more convenient;
This new generation auto lensmeter is based on Hartmann Sensor technology. Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.

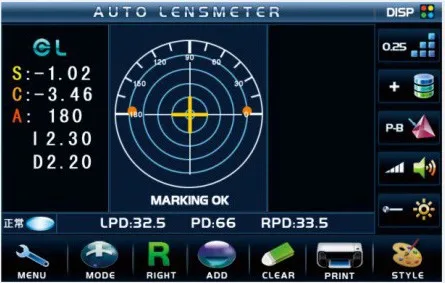

3. Measurement screen
Easy to use with recognizable icons;
It provides a user-friendly graphical interface for an immediate understanding;

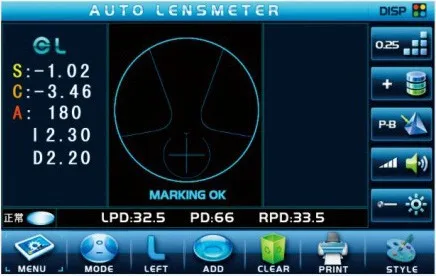

4. Progressive measurement
A graph helps the operator to improve accuracy and speed in the measurement of near and far vision;

5. Automatic recognition of single and progressive lens

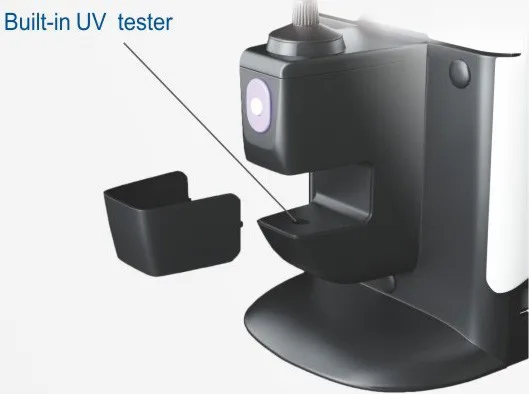

6. Bulit-in UV tester with Hi-speed UV measurement

Just hold the lens through the sensor, the display will easily indicate the UV measurement by the progress bar;

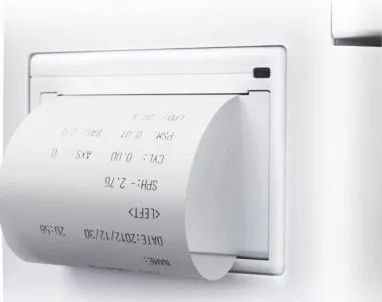

7. Built-in thermal printer

Quick data print with bulit-in printer. Easy to reload printer paper.

Measurement Range:
Sphere: 0~±25D (0.01/0.12/0.5D steps)
Cylinder: 0~±9.99D (0.01/0.12/0.25D steps)
Axis: 0~180°(1°steps)
Addition: 0~9.99D (0.01/0.12/0.25? steps)
Prism: 0~15 (0.01/0.12/0.25? steps)
Measuring mode: Single/Pregressive/auto recognition/Contact lens(soft/hard)
Pupil distance: 45~90mm, 0.5mm steps
Cylinder: +, +/-, –
Prism: X-Y, P-B
Measuring speed: 0.1 second
Lens diameter: 20-108mm
Contact lens: Soft / Hard lens
Display: 7” TFT LCD 758×480 pixels
Printer: Thermal printer
Power supply: 100-240V 50/60Hz
Dimension: 222(W)*161(D)*372(H)mm
Package: 515(W)*320(D)*390(H)mm
Weight: Approx 5kg
