AUTO LENS EDGER SJM 2008 JINGLIAN

Description

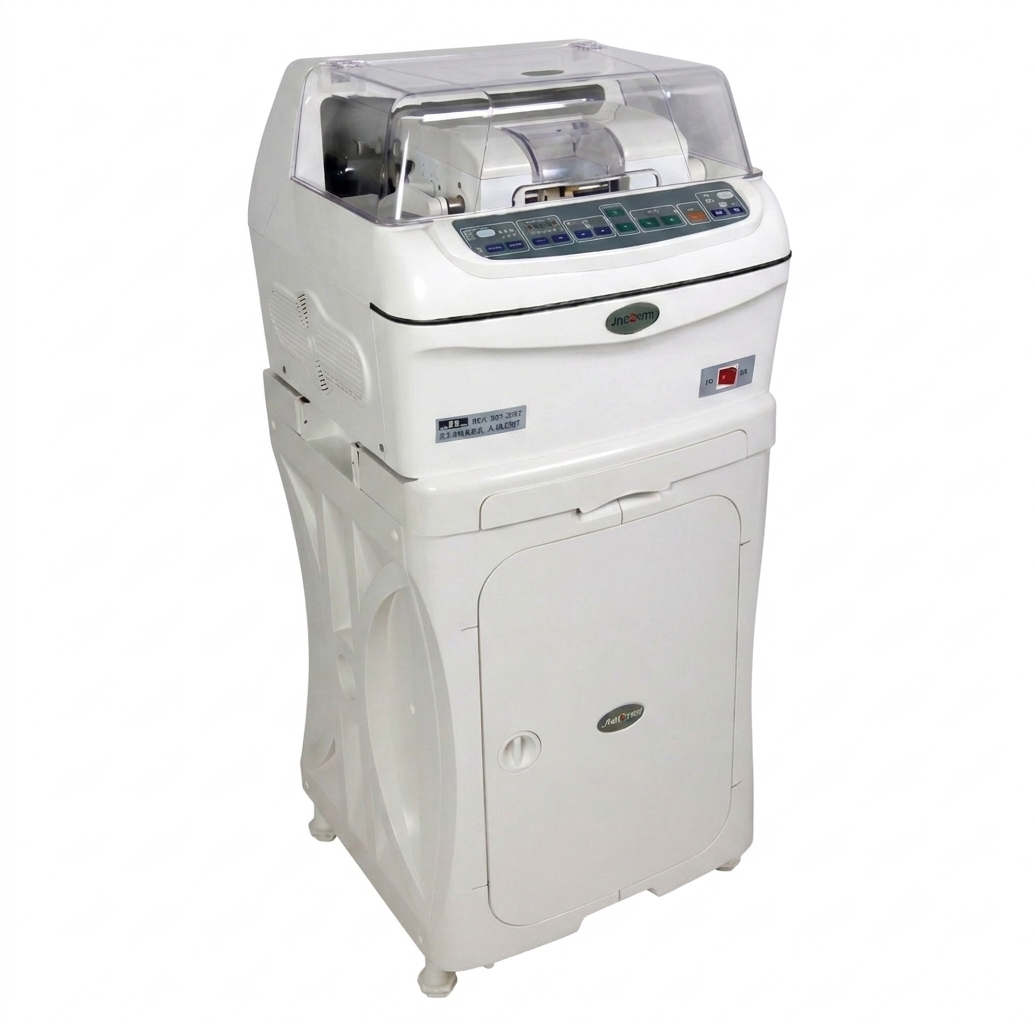

Auto Lens Edger SJM 2008 – Advanced Automatic Optical Lens Edging Machine

The Auto Lens Edger SJM 2008 is a reliable and high-performance optical lens edging machine designed to deliver precise, smooth, and professional lens finishing. Built with advanced technology and intelligent automation, this machine is ideal for optical laboratories, eyewear manufacturers, eye hospitals, and optical retail stores. Its automatic pressure adjustment, intelligent re-edging system, and multiple grinding options ensure accurate lens processing while reducing manual effort and improving productivity.

Advanced Pressure Clamp System

The Auto Lens Edger SJM 2008 features an advanced pressure clamp system with a patented rotary lens holding mechanism. The machine automatically adjusts clamping pressure within seconds to secure the lens firmly during the edging process. This intelligent pressure control minimizes the risk of lens slipping, movement, or cracking while maintaining precise optical center alignment. It is suitable for processing lenses of various thicknesses, making it a versatile solution for modern optical laboratories.

High-Performance Grinding System

The machine is equipped with four precision grinding wheels that efficiently perform multiple lens finishing operations. Separate grinding functions for glass and plexiglass help increase wheel life and improve overall performance.

The grinding system supports:

• Glass lens edging
• Plexiglass lens edging
• Re-beveling
• Edge polishing
• V-edge polishing
• Flat-edge polishing

The imported grinding wheels complete multiple grinding stages to produce smooth, accurate, and professional-quality lens edges while minimizing the possibility of cracks or damage.

Intelligent Re-Edging Technology

The intelligent re-edging system automatically detects when additional edging is required and performs the process without unnecessary manual intervention. This advanced feature reduces overall processing time while improving edging accuracy and delivering consistent finishing results.

Adjustable Template System

The Auto Lens Edger SJM 2008 includes a large adjustable template table that allows operators to modify edging dimensions quickly and accurately. The machine supports a grinding diameter from 26 mm to 110 mm, making it suitable for a wide range of ophthalmic lenses. A rubber positioning system ensures stable lens alignment throughout the edging process.

User-Friendly Control Panel

The easy-to-use control panel simplifies daily operation through clearly arranged controls and indicators. It includes:

• Function selection keys
• Pattern selection
• Template adjustment controls
• Power indicator
• Operating status indicator
• Alarm notification system

The safety-oriented power switch design enhances operational reliability.

Intelligent Computer Control System

An integrated microcomputer control system manages the complete edging operation with high precision. Operators can easily select different edging styles using the simple keyboard interface.

Main functions include:

• Automatic re-grinding
• Bevel edge selection
• Flat edge selection
• Accurate process control
• Consistent lens finishing

Working Environment

For optimal performance, the machine operates under the following environmental conditions:

• Temperature: 5°C to 40°C
• Relative Humidity: 20% to 80% RH

Electrical Specifications

• Rated Voltage: AC 220V – 240V
• Power Consumption: Approximately 350W

Grinding Wheel Specifications

Machine Dimensions

• Length: 500 mm
• Width: 480 mm
• Height: 420 mm
• Working Height: 750 mm
• Net Weight: 60 kg

The compact design allows easy installation in optical laboratories while providing excellent stability during operation.

Standard Accessories

The Auto Lens Edger SJM 2008 is supplied with:

• Working Table
• Operating Instruction Manual
• Electrical Power Cable
• Machine Adjustment Tool Kit
• Demo Driller
• Centering Device

Pattern Making Instrument

The optional pattern making instrument is designed for simple operation and easy maintenance. It offers:

• Easy cleaning
• Low operating noise
• Minimal vibration
• Lightweight construction
• Convenient handling

Power Supply: 220V, 50Hz, 50W

Centering Instrument

The centering instrument provides accurate lens positioning before edging. It features:

• Visible transillumination system
• Smooth sliding plate
• Accurate lens sample alignment
• Reliable centering performance

Power Supply: 220V, 10W
